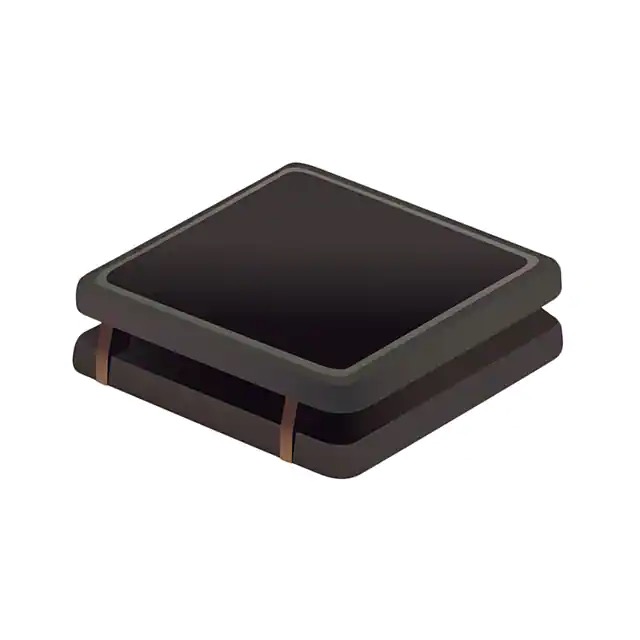

SRN3010TA-3R3M
Bourns Inc.
| Quantité: |
|---|
Description
FIXED IND 3.3UH 1.5A 130MOHM SMD
Detailed Description
| Mfr Part # | SRN3010TA-3R3M |
| Mfr | Bourns Inc. |
| Description | FIXED IND 3.3UH 1.5A 130MOHM SMD |
| Stock | 3,845 |
| Price | 0.46 |
| @ qty | 0 |
| Min Qty | 1 |
| Package | Tape & Reel (TR),Cut Tape (CT) |
| Series | SRN3010TA |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 3.3 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.5 A |
| Current - Saturation (Isat) | 1.1A |
| DC Resistance (DCR) | 130mOhm |
| Q @ Freq | 18 @ 1MHz |
| Frequency - Self Resonant | 85MHz |
| Size / Dimension | 0.118" L x 0.118" W (3.00mm x 3.00mm) |
| Height - Seated (Max) | 0.039" (1.00mm) |
SRN3010TA Series-Semi-shielded Power Inductors
*Semi-shielded construction
*Inductance range: 1 to 22 µH
*Rated current up to 2.1 A
*AEC-Q200 qualified
*Low profile: 1.0 mm max.
*RoHS compliant* and halogen free**
