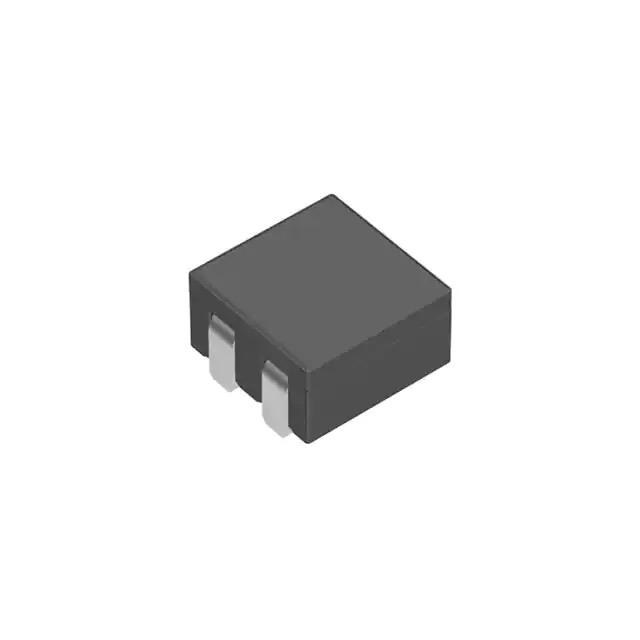

HPL505028FR10MRD3P
TDK Corporation
| Quantité: |
|---|
Description
FIXED IND 100NH 34A 880MOHM SMD
Detailed Description
*
| Mfr Part # | HPL505028FR10MRD3P |
| Mfr | TDK Corporation |
| Description | FIXED IND 100NH 34A 880MOHM SMD |
| Stock | 1,607 |
| Price | 3.22 |
| @ qty | 0 |
| Min Qty | 1 |
| Package | Tape & Reel (TR),Cut Tape (CT) |
| Series | HPL |
| Part Status | Active |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 100 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 34 A |
| Current - Saturation (Isat) | 27.5A |
| DC Resistance (DCR) | 88mOhm Max |
| Q @ Freq | - |
| Inductance Frequency - Test | 100 kHz |
| Package / Case | Nonstandard |
| Size / Dimension | 0.197" L x 0.197" W (5.00mm x 5.00mm) |
| Height - Seated (Max) | 0.110" (2.80mm) |
HPL505028F type FEATURES
*Achieved high-reliability inductors without joints
*Adoption of ferrites made of LowLoss material and low-RDC by frame forming
*Magnetic flux cancellation realizes low EMI
*Operating temperature range: –55 to +155°C (including self-temperature rise)
*Compliant with AEC-Q200
APPLICATION
ADAS - Level5 for Camera
