06035C103KAT2A
AVX Corporation
| Quantité: |
|---|
Description
CAP CER 10000PF 50V X7R 0603
Detailed Description
| Stock | 1321845 |
| Min Qty | 1 |
| Package | Tape & Reel (TR),Cut Tape (CT) |
| Capacitance | 10000 pF |
| Tolerance | ±10% |
| Voltage - Rated | 50V |
| Temperature Coefficient | X7R |
| Mounting Type | Surface Mount, MLCC |

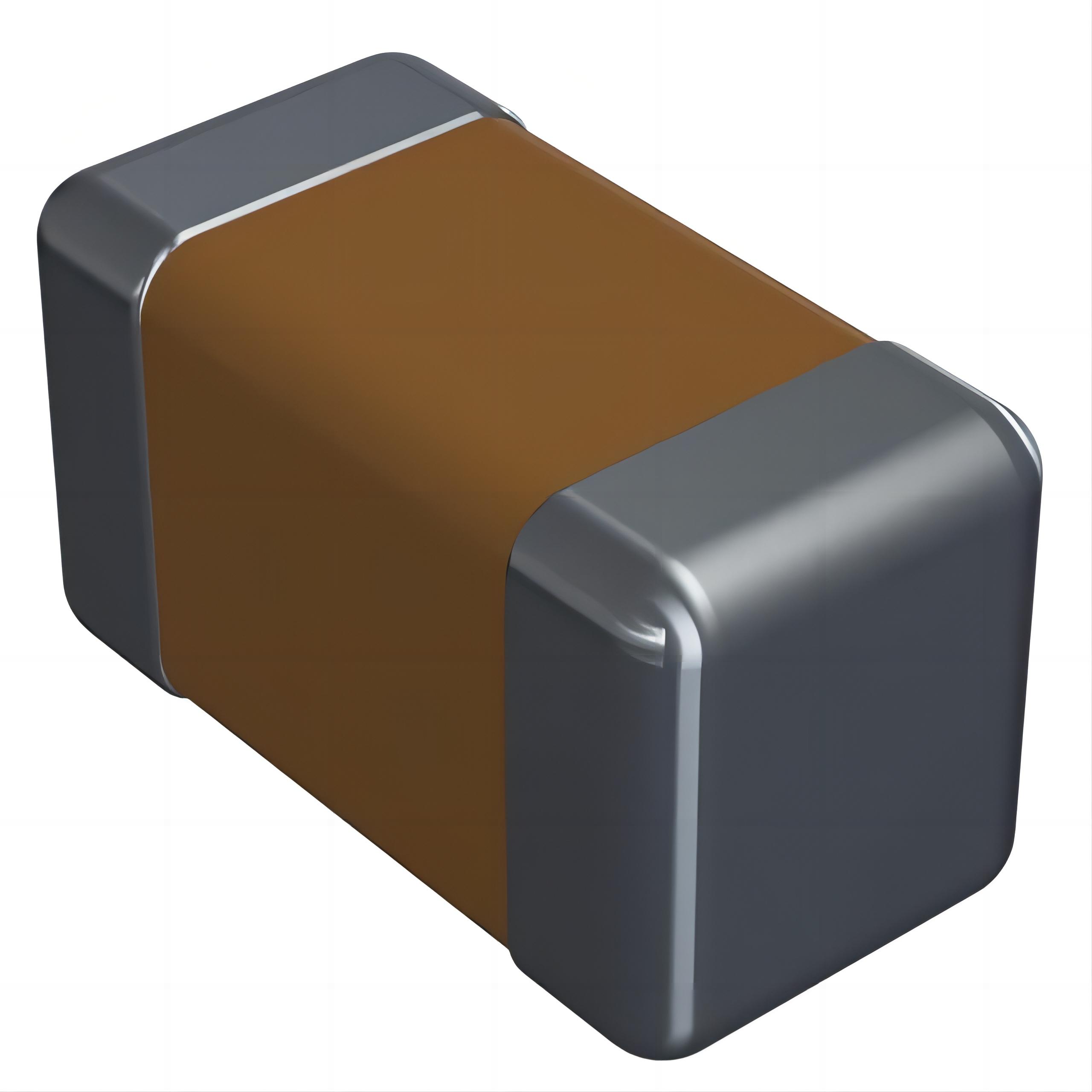

| Package / Case | 0603 (1608 Metric) |
| Size / Dimension | 0.063" L x 0.032" W (1.60mm x 0.81mm) |
| Thickness (Max) | 0.035" (0.90mm) |
X7R formulations are called “temperature stable” ceramics and fall into EIA Class II materials. X7R is the most popular of these intermediate dielectric constant materials. Its temperature variation of capacitance is within ±15% from -55°C to +125°C. This capacitance change is non-linear. Capacitance for X7R varies under the influence of electrical operating con-ditions such as voltage and frequency. X7R dielectric chip usage covers the broad spectrum of industrial applications where known changes in capacitance due to applied voltages are acceptable.
Download
Description
CAP CER 10000PF 50V X7R 0603
Detailed Description
| Stock | 1321845 |
| Min Qty | 1 |
| Package | Tape & Reel (TR),Cut Tape (CT) |
| Capacitance | 10000 pF |
| Tolerance | ±10% |
| Voltage - Rated | 50V |
| Temperature Coefficient | X7R |
| Mounting Type | Surface Mount, MLCC |
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension | 0.063" L x 0.032" W (1.60mm x 0.81mm) |
| Thickness (Max) | 0.035" (0.90mm) |
X7R formulations are called “temperature stable” ceramics and fall into EIA Class II materials. X7R is the most popular of these intermediate dielectric constant materials. Its temperature variation of capacitance is within ±15% from -55°C to +125°C. This capacitance change is non-linear. Capacitance for X7R varies under the influence of electrical operating con-ditions such as voltage and frequency. X7R dielectric chip usage covers the broad spectrum of industrial applications where known changes in capacitance due to applied voltages are acceptable.
